Zoom H6studio Handy Recorder

Digital Recorder

ID: ZM107524

Zoom

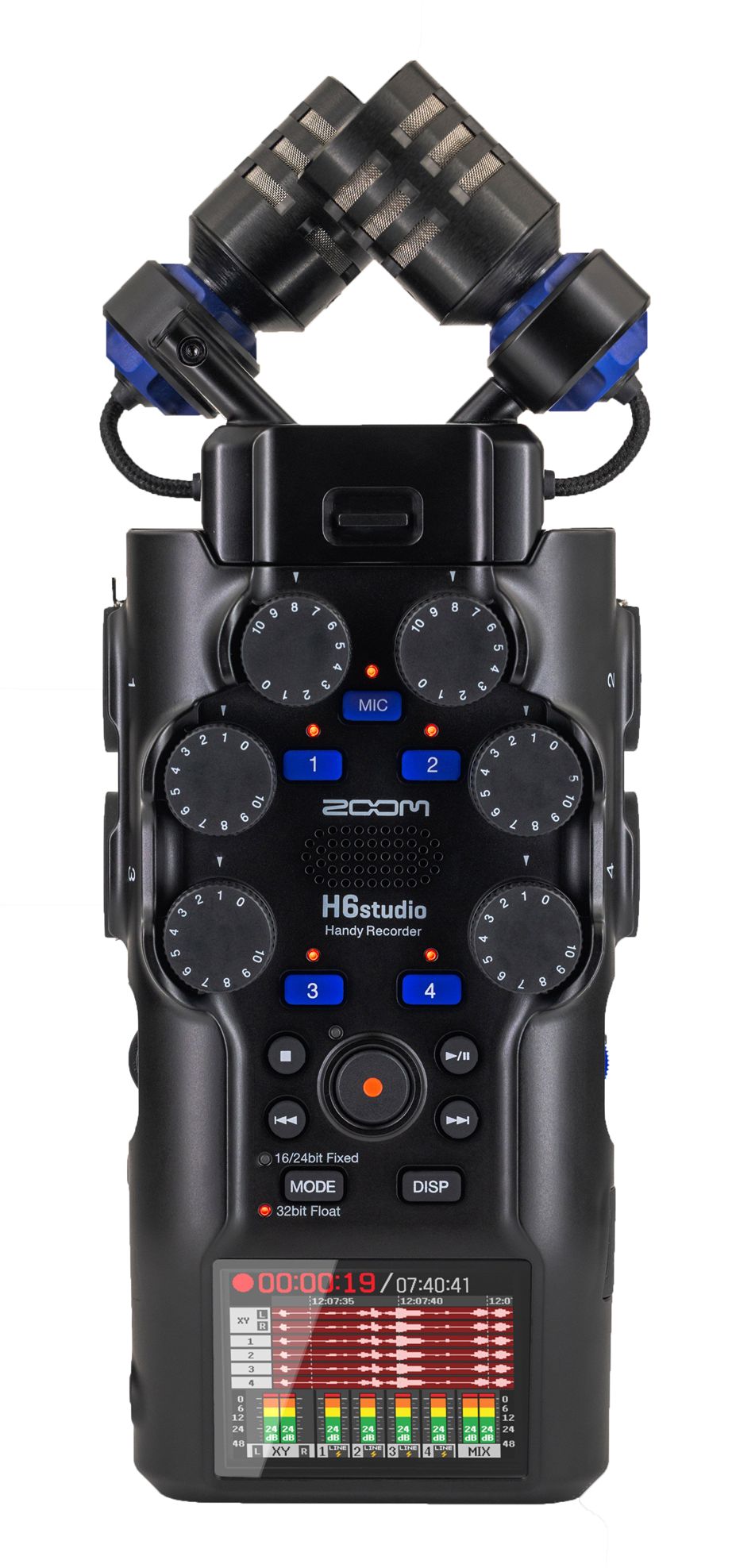

Zoom H6studio Handy Recorder
441 €

In stock

Estimated delivery: Friday, 26 June

Accumulate discounts for your card

Best price on the market

Color:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Zoom H6studio Handy Recorder
Zoom H6studio Handy Recorder
441 €
Roland RCC-5-TR2R 1,5mt JackSt/2xRcaM Audio Cable
Roland RCC-5-TR2R 1,5mt JackSt/2xRcaM Audio Cable
16,77 €

Zoom H6studio

Engineered with cutting-edge F-Series preamps and dual A/D converters, the H6studio captures pristine audio with an astonishing 132 dB dynamic range. Its large-diaphragm XY microphones, stacked at a perfect 90º angle, deliver rich, phase-free recordings—even under intense sound pressure up to 140 dB SPL.


Whether you're recording podcasts, music, film audio, or field soundscapes, the H6studio adapts effortlessly with 32-bit float recording, dedicated gain knobs, and a format switch that lets you toggle between 16/24-bit and 32-bit float on the fly. With six XLR/TRS inputs, phantom power, and support for up to eight simultaneous tracks, it’s a mobile studio in your backpack.


Wrapped in RF-shielded armor and equipped with shock-mounted mics, the H6studio shrugs off interference and handling noise - so your recordings stay clean, even in chaotic environments. It's not just a recorder. It’s your creative command center.

Features
check_circle_outline
No levelling required thanks to 32-bit float converter technology with dual ad converter (132dB dynamic range) and F-series preamplifiers
check_circle_outline
System with interchangeable microphone capsules (Capsule System 3.0)
check_circle_outline
Compatible with SSH-6e, EXH-6e, XYH-6e
check_circle_outline
XYH-5s X/Y microphone capsule included (19.4 mm large diaphragm, 90° XY stereo configuration, max. 140 dB SPL)
check_circle_outline
Recording formats: 16-bit/24-bit WAV fixed or 32-bit float with up to 192 kHz
check_circle_outline
Storage medium: microSDHC cards up to 32 GB, microSDXC cards up to 2 TB (not included)
check_circle_outline
Simultaneous recording of up to 8 tracks and playback of up to 6 tracks
check_circle_outline
4x XLR/TRS combo jack with F-series preamplifier for microphone and line signals
check_circle_outline
+48V phantom power switchable
check_circle_outline
Built-in speaker
check_circle_outline
2" colour display with level and waveform display
check_circle_outline
Timecode synchronisation via Zoom BTA-1 (not included) or TCA-1 adapter (not included)
check_circle_outline
Recording and streaming via USB-C to Mac, PC, iOS and Android (6 inputs and 2 outputs)
Specifications
Zoom H6studio Handy Recorder
Input / Output Channels
Inputs
Mic capsule 1 | MIC/LINE (mono) 4
Descreve-nos a quantidade de saídas áudio do instrumento / dispositivo, e descreve os conetores das mesmas.
Output(s)
LINE 1 | Headphone 1 | Built-in speaker (mono) 1
XY mic (XYH-5s) Input
Format
90º XY stereo
A sensibilidade indica-nos a forma como o equipamento reage a um dado volume, dando-nos assim uma ideia do tipo de usos que serão mais ou menos apropriados.
Sensitivity
–41 dB/Pa at 1 kHz
Nível máximo de pressão sonora que o microfone pode suportar sem distorcer.
Maximum Sound Pressure Input
140 dB SPL
MIC/LINE IN (XYH-5s) Input
Connector
1 Stereo mini jack
É geralmente definida como a relação média entre a amplitude ou potência do sinal na porta de saída e a amplitude ou potência na porta de entrada. É frequentemente expresso utilizando as unidades logarítmicas decibel (dB) ("dB de ganho").
Input Gain
−∞ – +60 dB
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
2 kΩ or more
Plug-in Power
2.5 V
MIC/LINE (mono) Input
Tipo de conetores disponíveis no equipamento, e/ou para qual tipo de ligação servem.
Connector(s)
4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT
É geralmente definida como a relação média entre a amplitude ou potência do sinal na porta de saída e a amplitude ou potência na porta de entrada. É frequentemente expresso utilizando as unidades logarítmicas decibel (dB) ("dB de ganho").
Input Gain
−∞ – +60 dB
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
MIC: 3 kΩ or more
Maximum Input Level
MIC: +4 dBu
Phantom Power
+48 V
Equivalent Input Noise
–127 dBu or less (IHF-A) at 150Ω input
Line Out
Connector
1 Stereo mini jack
Nível máximo de saída do sinal (medido em dB).
Maximum Output Level
+1 dBu
A impedância de saída indica-nos se o sinal que sai do pedal é sinal de instrumento ou de linha.
Output Impedance
110 Ω or less
Headphone Out
Connector
1 Stereo mini jack
Nível máximo de saída do sinal (medido em dB).
Maximum Output Level
20 mW + 20 mW (when 32 Ω load)
A impedância de saída indica-nos se o sinal que sai do pedal é sinal de instrumento ou de linha.
Output Impedance
10 Ω or less
Built-in Speaker
Type
20 mm x 30 mm elliptical dynamic speaker
Effective Maximum Output
250 mW
Recorder
Capacidade de gravação de faixas em simultâneo.
Maximum Simultaneous Recording Tracks
8
Capacidade de reprodução de faixas em simultâneo.
Maximum Simultaneous Playback Tracks
6
Formatos de gravação suportados pelo equipamento
Recording Formats
WAV | 44.1/48/96/192 kHz | 16-bit/24-bit/32-bit float | mono/stereo | BWF and iXML formats supported
Cartões de memória suportados pelo equipamento.
Recording Media
MicroSDHC and microSDXC memory cards
Other
Indica se o dispositivo tem visor. Pode especificar qual o tipo (LCD, LED) ou a forma de apresentação dos caracteres.
Display
2" full-color LCD 320 x 240
Dedicated Wireless Adapter Remote
ZOOM BTA-1
Power Supply
Informa sobre quais as baterias adequadas para o equipamento.
Batteries
4 AA alkaline, lithium or rechargeable NiMH batteries
Fonte de alimentação do equipamento.
AC Adapter
Zoom AD-17 (DC 5 V/1 A) • USB bus power is supported
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
5 W maximum
Estimated Continuous Operation Time Using Batteries *1
Alkaline Batteries
About 15 hours *4
NiMH Batteries
(1900 mAh) About 12 hours *4
Lithium Batteries
About 26 hours *4
Estimated Continuous Operation Time Using Batteries *2
Alkaline Batteries
About 4.5 hours *4
NiMH Batteries (1900 mAh)
About 5 hours *4
Lithium Batteries
About 11 hours *4
Estimated Continuous Operation Time Using Batteries *3
Alkaline Batteries
About 2 hours *4
NiMH Batteries (1900 mAh)
About 3 hours *4
Lithium Batteries
About 6.5 hours *4
Notes
2-track Recording
2-track (XYH-5s) recording || At 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
6 Track
6-track (XYH-5s and inputs 1–4) recording || At 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
6- Track
6-track (XYH-5s and inputs 1–4) recording || At 192 kHz/32-bit float with phantom power on (INPUTS 1-4), headphones used (33Ω load), LINE OUT used (10KΩ load), REMOTE used (BTA-1), Power Saving On, Display Brightness Bright
Approximate values
• These values are approximate. • Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Dimensions & Weight
Displays the dimensions of the unit in width, depth and height.
Dimensions (W x D x H)
86.0 mm × 221.0 mm × 54.6 mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
477 g (including batteries)
