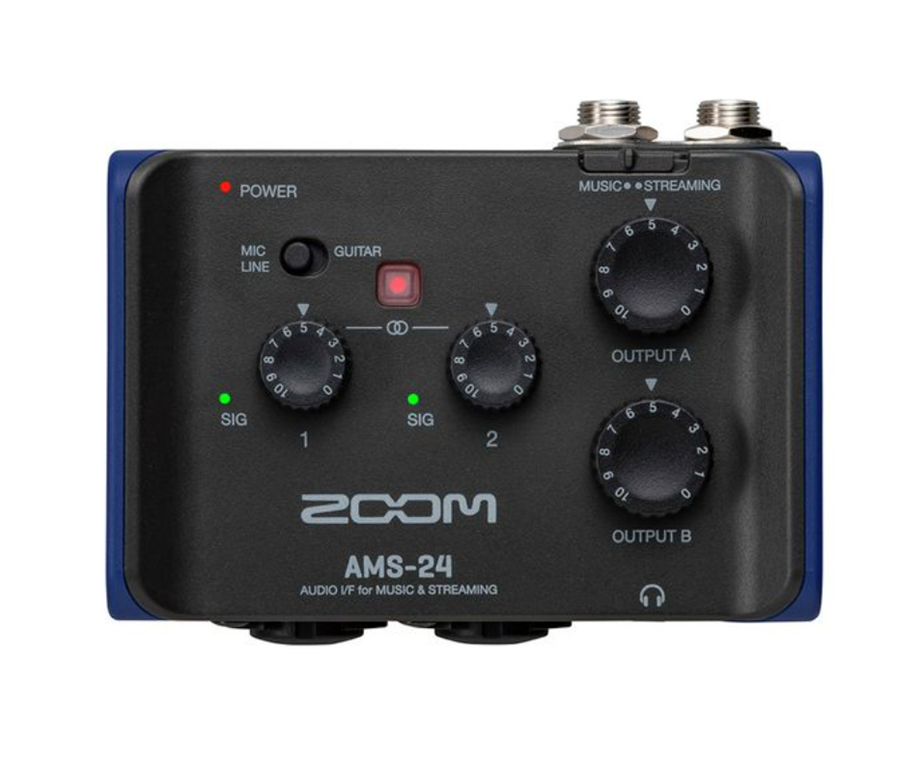

Zoom AMS-24 Audio Interface

Name: Zoom AMS-24 Audio Interface
Brand: Zoom
SKU: ZM101460
Price: 118 EUR
Availability: InStock
Rating: 4.8 (2076 reviews)

Audio Interface

ID: ZM101460

118 €

In stock

Estimated delivery: Thursday, 25 June

Accumulate discounts for your card

Best price on the market

VIEW STORE STOCK

View all options and shipment methods

Description

Videos

USB Zoom AMS-24 Interface | 2-In, 4-Out

The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom’s low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms. In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram, and Patreon. In Music mode, record with software like Adobe Audition, Pro Tools, Cubase, and Garage Band.

Features

Can be powered from your PC or Mac via USB-C.

Use of external power when working from a tablet or mobile phone.

Power supply Zoom AD-17 (DC 5 V/1A) Not included.

Additionally, it can also use two AA batteries (not inluded).

In the box

AMS-24 USB Audio Interface

USB-C Cable

Quick Tour

About
Zoom AMS-24 Audio Interface

LITTLE SWITCH, BIG STREAMS.

Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output. When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

ONBOARD MONITORING.

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

LOOP IT BACK.

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

LITTLE SWITCH, BIG STREAMS.

Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output. When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

ONBOARD MONITORING.

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

LOOP IT BACK.

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Specifications
Zoom AMS-24 Audio Interface

Inputs

Number

2 (Mono)

Type

XLR/TRS combo jacks

Input Gain

−∞ – +58 dB / −∞ – +50 dB

Impedance

2.7 kΩ (XLR); 18 kΩ / 330 kΩ (TRS)

Maximum Level

+6 dBu (XLR); +22 dBu / +8.5 dBu (TRS)
