Handheld Wireless Microphones

Definitive Audio TD 100 PT Headset Wireless Microphone

Handheld Wireless Microphone

ID: ZM106430

Definitive Audio

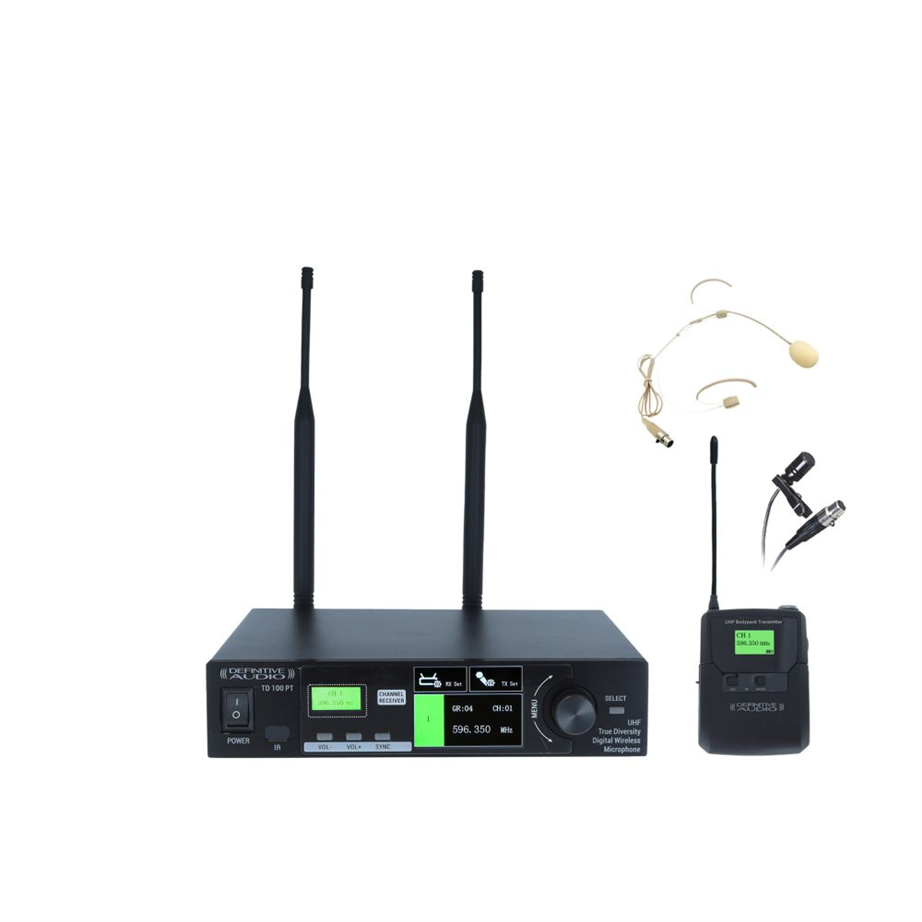

Definitive Audio TD 100 PT Headset Wireless Microphone
199 €

In stock

Estimated delivery: Friday, 26 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Definitive Audio TD 100 PT Headset Wireless Microphone
Definitive Audio TD 100 PT Headset Wireless Microphone
199 €
PowerAcoustics CAB2022 9mts xlrF/xlrM Microphone Cable
PowerAcoustics CAB2022 9mts xlrF/xlrM Microphone Cable
15,49 €

Definitive Audio TD 100 PT Headset Wireless Micro

The TD 100 PT is a UHF microphone equipped with a True Diversity pocket transmitter, which considerably improves reception quality during operation. It is supplied with both a headset micro and a lavalier micro.


It is designed around a standard 1U half-rack structure, a colour LCD display and control buttons for the necessary monitoring and settings. PLL-type wireless system ensuring simple and effective use in every situation. Outstanding build quality with unusual value for money. The TD 100 PT offers an excellent performance, with clear, crisp and precise sound.

Features

UHF True Diversity bodypack transmitter system

check_circle_outline
Supplied with one headset and one lavalier microphone

UHF band PLL phase-locked circuit

check_circle_outline
Stable characteristics, low harmonic interference

Integrated antenna distribution system

check_circle_outline
Effectively reduces mutual interference

Frequency group design

check_circle_outline
Several predefined groups are compatible with the frequency of use

Adjustable background colour on both displays

check_circle_outline
The colour of the transmitter display can be changed with the receiver display accordingly

ACT Function

check_circle_outline
Wireless synchronisation of the transmitter via the infrared interface

Control and functions

check_circle_outline
1 main control + 4 sub-channels with a coloured LCD to display functions
Specifications
Definitive Audio TD 100 PT Headset Wireless Microphone
General
Tuning Bandwidth
50 MHz up to 2000 switchable frequencies (depending on region)
Frequency Response Range
50Hz to 16KHz with flat response
Antenna(s)
2 separate antenna sockets for better reception
É um método de interligação de equipamento de áudio que utiliza linhas equilibradas. Este tipo de ligação é muito importante na gravação e produção de som porque permite a utilização de cabos longos ao mesmo tempo que reduz a susceptibilidade ao ruído ext
Balanced Output
1 x XLR
Balanced Mix Out
1 x Jack
Indica se o dispositivo tem visor. Pode especificar qual o tipo (LCD, LED) ou a forma de apresentação dos caracteres.
Display
LCD colour display x 2
UHF Frequency Range
580 - 608 MHz
Maximum Transmission Power
13dBm (depending on region)
Descreve a equalização disponível, que servirá para modificarmos o timbre, acrescentando ou removendo agudos, graves, médios, etc.
EQ
7-band, adjustable
Receiver
Receive
Single Channel
Mute Control Mode
Audio code and noise lock
Oscillation Mode
Phase-locked PLL for the frequency synth
Modulation Mode
FM modulation
Magnitude mínima necessária para o sinal de entrada conseguir operar com a melhor qualidade possível.
RF Sensitivity
Input 6dBV, Sinal/Noise>80dB
Operation Range
60 linear metres *Note: the actual range depends on absorption, reflection and interferences affecting the RF signal and the environment in which the microphone is used.
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
50Hz to 18KHz (± 3 dB)
A distorção harmónica total, do inglês total harmonic distortion (THD), é uma medida da distorção harmónica presente num sinal e é definida como a razão entre a soma das potências de todos os componentes harmónicos e a potência da frequência fundamental.
Total Harmonic Distortion
<0.5% at 1KHz
Panel Display
LCD + LED
Dimensions (W x H x D)
205 x 46 x 160 mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
1,70 Kg
Transmitter(s)
Microphone(s) Type
Headset and Lavalier
Indica o padrão/área de captação abrangente do microfone. Pode ser considerado omnidirecional, bidirecional (figura de 8), cardióide, supercardióide e hipercardióide.
Polar Pattern
Cardioid
Oscillation Mode
Phase-locked PLL for the frequency synth
Indica a potência da transmissão do sinal.
Transmission Power
Up to 30mW (depending on the environment)
Gain Sensor
Adjustable gain
Refere-se consumo de energia, em amperes.
Current Consumption
<130mA
Indica se o dispositivo tem visor. Pode especificar qual o tipo (LCD, LED) ou a forma de apresentação dos caracteres.
Display
Colour LCD
