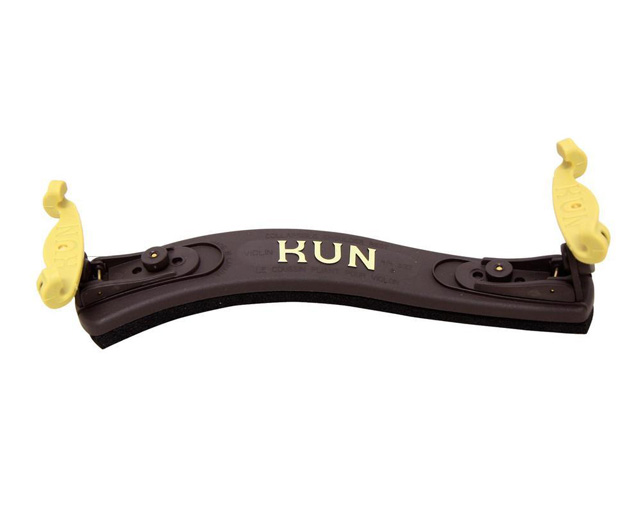

Kun 434543 Black Shoulders Rest

Electro-Voice ELX200-15P Black Active Speaker

Active Loudspeaker

ID: ZM101080

Electro-Voice
Electro-Voice ELX200-15P Black Active Speaker
Electro-Voice ELX200-15P Black Active Speaker 1
Electro-Voice ELX200-15P Black Active Speaker 2
Electro-Voice ELX200-15P Black Active Speaker 3
820 €

In stock

Estimated delivery: 24 to 25 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Electro-Voice ELX200-15P Black Active Speaker
Electro-Voice ELX200-15P Black Active Speaker
820 €
Tama TDK10 Drum Key
Tama TDK10 Drum Key
5,26 €

15" Powered Loudspeaker

ELX200-15P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1L 1-inch titanium compression driver).


ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind.

Features

EV QuickSmart Mobile application

check_circle_outline
Quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions

QuickSmartDSP features best-in-class processing

check_circle_outline
Easy setup via four presets (Music, Live, Speech, Club), sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.

High-efficiency 1200 W Class-D power amplifier

check_circle_outline
Delivers up to 132 dB peak SPL utilizing transducers designed and engineered by EV.

EV-patented Signal Synchronized Transducers (SST)

check_circle_outline
The waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

Professional-grade hardware

check_circle_outline
Three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
Specifications
Electro-Voice ELX200-15P Black Active Speaker
Miscellaneous
Representa o intervalo de frequências sobre o qual o equipamento consegue reproduzir som, sem que exista uma diferença menor que 3dB na pressão sonora.
Frequency Response (-3 dB)
55 Hz - 16 kHz *Full space measurement using music DSP preset.
Designa a resposta de frequências, ou o alcance do sistema, quando o mesmo está menos 10 décibeis abaixo.
Frequency Range (-10 dB)
48 Hz - 19 kHz *Full space measurement using music DSP preset.
O nível de pressão sonora máxima emitida pelo sistema, normalmente expresso em dB.
Maximum SPL
132 dB *Measured at 1 m using broadband pink noise at maximum output.
Raio da cobertura sonora abrangida pela equipamento, tanto na sua vertente horizantal como vertical, normalmente expresso em graus.
Coverage (H x V)
90° x 60°
Representa o valor de corrente que necessita para funcionar, geralmente expresso em Watts.
Power Rating
1200 W
Designa qual é o tipo de transdutor de frequências graves da coluna.
LF Transducer
EVS-15M 381 mm (15")
Designa qual é o tipo de transdutor de frequências agudas da coluna.
HF Transducer
DH-1L 1-inch titanium compression driver
A frequência de crossover indica-nos em qual frequência é feita a divisão entre o áudio que vai para o sub ou woofer, e qual vai para os tops ou tweeters. Muitas vezes esta frequência é regulável para podermos tirar melhor proveito das diferentes salas on
Crossover Frequency
1600 Hz
Tipo de conetores disponíveis no equipamento, e/ou para qual tipo de ligação servem.
Connector(s)
(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Tipo de material que compõe o invólucro (carcaça).
Enclosure
Polypropylene
Grille
18 AWG steel with powdercoat
Indica a possibilidade da coluna ser suspensa, com aplicações próprias para o efeito.
Suspension
(3) M10 suspension points
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³
Cor do produto.
Color
Black or White
Apresenta as dimensões (totais) do produto, geralmente em milímetros ou polegadas.
Dimensions (H x W x D)
710 mm x 423 mm x 384 mm (28.0 in x 16.7 in x 15.2 in)
Peso efetivo (real) do artigo.
Net Weight
18.9 kg (41.7 lb)
Peso do equipamento ao ser expedido, geralmente definido em quilogramas (Kg) ou libras (lb).
Shipping Weight
21.8 kg (48.1 lb)
