Analogue Mixers With Effects

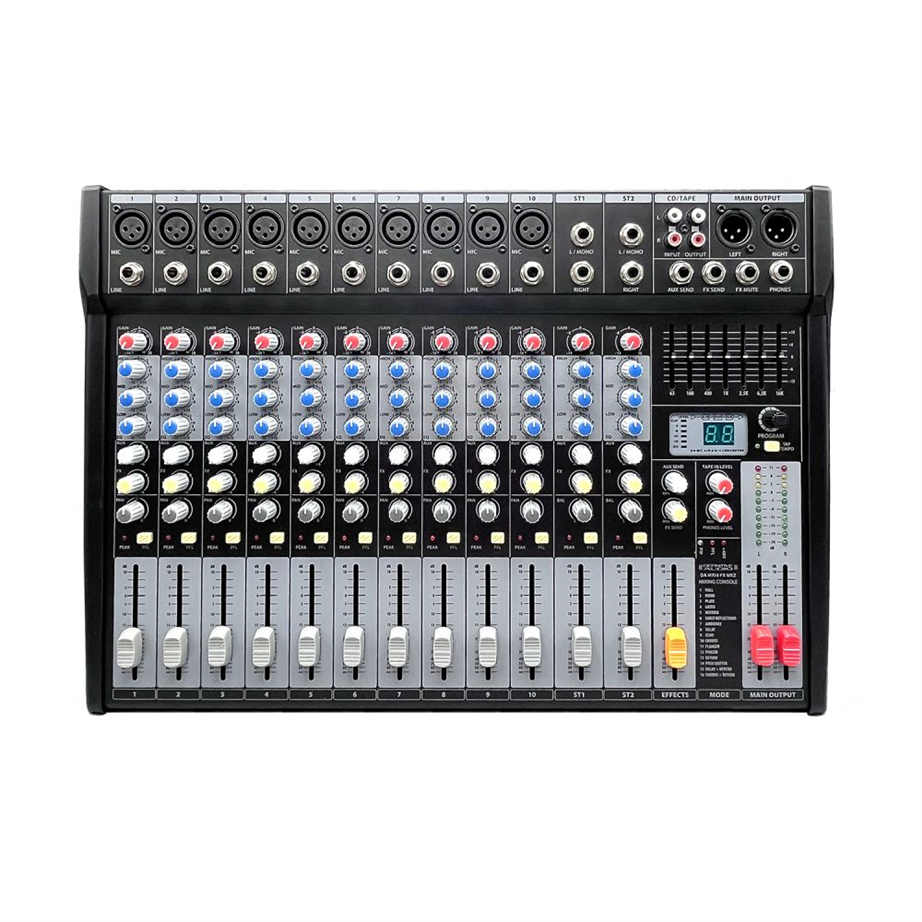

Definitive Audio DA MX14 FX MK2

Mixer With Effects

ID: ZM106190

Definitive Audio
Definitive Audio DA MX14 FX MK2
355 €

In stock

Estimated delivery: Friday, 26 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Definitive Audio DA MX14 FX MK2
Definitive Audio DA MX14 FX MK2
355 €
Roland RCC-10-3528 3mt MJackSt/2xJackM Audio Cable
Roland RCC-10-3528 3mt MJackSt/2xJackM Audio Cable
16,90 €

Mixer with Effects

Definitive Audio introduces a new range of analogue mixing desks: the DA MX FX2. The range comprises 2 models: 10-channel mono inputs + 2 groups of stereo inputs, 6-channel mono inputs + 2 groups of stereo inputs.


The DA MX FX2 range is packed with features, including two AUX sends, two main channel outputs, a DSP digital effects processor, a 7-band graphic equalizer, and a high-quality, high-precision 60 mm fader for fine-tuning channel level. These mixers offer superior sonic performance with a high cost/performance ratio. Rack-mount brackets included for maximum flexibility.

Features
check_circle_outline
Built-in phantom power
check_circle_outline
Linear volume faders
check_circle_outline
Rack not included
Specifications
Definitive Audio DA MX14 FX MK2
Miscellaneous
A sensibilidade indica-nos a forma como o equipamento reage a um dado volume, dando-nos assim uma ideia do tipo de usos que serão mais ou menos apropriados.
Sensitivity
0vu=+4db
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
+/- 1 db, 20 hz 30khz
CMRR, MIC Input
>75dB (1Khz)
Indica a distorção harmónica total, do inglês total harmonic distortion (THD). Valores de distorção menores significam que os componentes em um alto-falante, amplificador ou microfone, ou outro equipamento, produzem uma reprodução mais precisa de uma gravação
THD+N
140dBu at 1kHz; Mic to output <0.01
Progressive Attenuation
> 80dB (@1kHz)
Maximum Input Level
MIC +22 dB; Other lines +20 dB
Equivalent Input Noise
Mic input (maximum gain) -122 dB
Nível máximo de saída do sinal (medido em dB).
Maximum Output Level
XLR +28 dB, Other lines +22 dB
DSP Processor
24-bit converter - 40 kHz sampling
EQ Mono/Stereo Input
HF: 12 KHz +/- 15 dB, MF: +/-15 dB, 2.5 KHz, LF: +/-15 dB, 80 Hz
Master Level
12 segments -30 dB at CLIP
Type of power supply needed for the equipment to operate.
Power Supply
230 VAC, 50-60Hz
Phantom Power
+48V Switchable globally on all XLR inputs
Apresenta as dimensões totais do produto, habitualmente em centímetros milímetros ou polegadas.
Dimensions
479 x 322 x 153 mm
FX/AUX Output
TRS unbalanced, <75 ohm, -2 dB, Max. +18 dB
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
5,5 Kg
Retoma o sinal de outro dispositivo.
RETURN
2-way RCA, unbalanced, 4 K ohm, -2dB
Envia o sinal para outro dispositivo.
SEND
2-way RCA, unbalanced, <75 ohm, -2 dB
