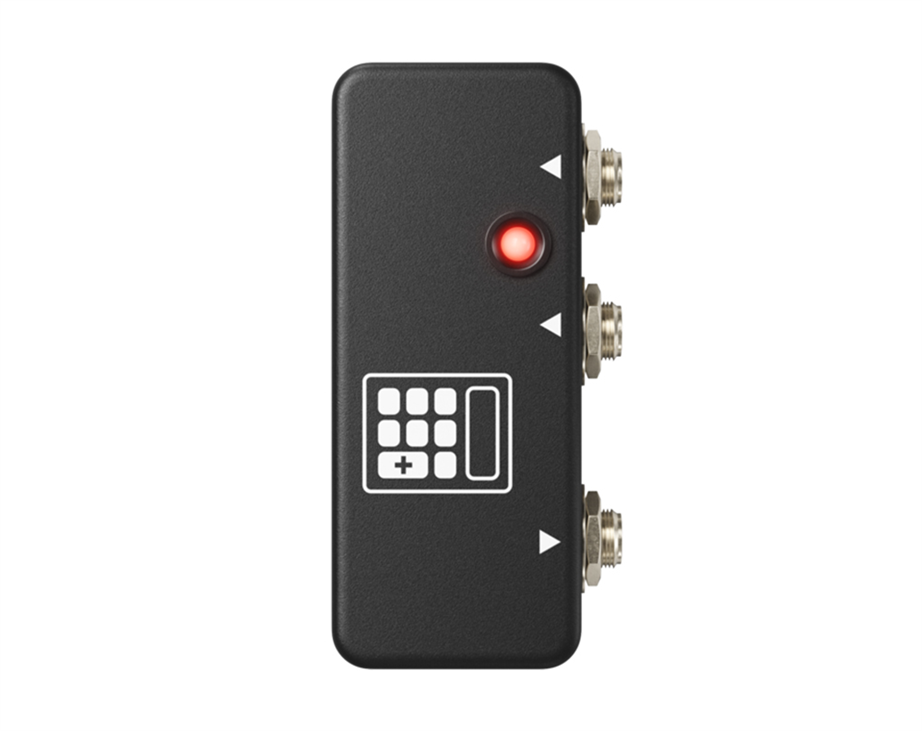

JHS Summing Amp Guitar Pedalboard

JHS Summing Amp Guitar Pedalboard

Guitar Effects

ID: ZMJHSGBEG240001

JHS
JHS Summing Amp Guitar Pedalboard
JHS Summing Amp Guitar Pedalboard 1
JHS Summing Amp Guitar Pedalboard 2
94,24 €

In stock

Estimated delivery: Friday, 26 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

JHS Summing Amp Guitar Pedalboard
JHS Summing Amp Guitar Pedalboard
94,24 €
LP 234 Shekere
LP 234 Shekere
20,25 €
JHS Summing Amp Guitar Pedalboard
JHS Summing Amp Guitar Pedalboard
94,24 €
Sonor GTB Block
Sonor GTB Block
9,65 €
JHS Summing Amp Guitar Pedalboard
JHS Summing Amp Guitar Pedalboard
94,24 €
LP LP188 Red Foot Tambourine
LP LP188 Red Foot Tambourine
15,96 €
View more sets

Summing Amp

This is perfect for putting effects in parallel so that they are not affected by one another. The Edge used this technique in the 80s with his delays. When you have a quarter note delay and a dotted eighth delay and you place them in parallel then sum them back together, the effect is that both delays come through more clearly and are not “delaying the delays”. This can also be used with overdrives so that they are not pushing each other as in series, but sit atop one another in parallel. Another use is combining fuzz and compression in parallel so the fuzz isn’t getting choked by the compression.

The Summing Amp gives you the ability to use effects together in completely new ways that you may never have imagined and can open up new and inspiring sounds with your old effects. This simple little box takes two inputs and creates one output but it adds up to a whole lot more!

Features
check_circle_outline
Mixes two mono input signals into a mono output signal
check_circle_outline
Status LED
check_circle_outline
Metal housing
check_circle_outline
Blends two inputs into one: 2 x 6.3mm mono jacks inputs
check_circle_outline
Mono jack output: 6.3 mm
check_circle_outline
Power supply: via 9 V (2.1 mm x 5.5 mm coaxial connection, polarity (-) inside, not included)
check_circle_outline
This pedal requires standard 9v dc negative power
check_circle_outline
The summing amp is designed to work with input signals that are below 14v input gain. Anything above 14v input gain will cause the unit to clip
check_circle_outline
Made in USA
Specifications
JHS Summing Amp Guitar Pedalboard
Specifications
Esta secção designa o tipo de efeito, ou pode enumerar os efeitos contidos no equipamento.
Effect Types
Effect Mixer
Apresenta as dimensões totais do produto, habitualmente em centímetros milímetros ou polegadas.
Dimensions
95 x 47 x 35 mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
120 g
Type of power supply needed for the equipment to operate.
Power Supply
Via 9 V
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
Less than 100 mA
