PreSonus
PreSonus StudioLive Classic 16.0.2 Digital Mixing Desk

PreSonus StudioLive Classic 16.0.2 Digital Mixing Desk

Digital Mixer

ID: ZM105319

898 €

In stock

Estimated delivery: 22 to 24 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

PreSonus® StudioLive® Classic 16.0.2 USB Digital Console Mixer

The StudioLive® 16.0.2 USB is a great choice for small churches, schools, bands, and clubs, and it's perfect for a small studio on a budget. It features 16 channel inputs, 4 of them stereo channels, and 12 with XMAX mic preamps, a built-in 18x16 USB 2.0 interface, extensive signal processing on every channel and bus, 4 aux buses, extensive metering, scene and setting save/recall, MIDI control and more.


Yet it's lightweight and rack-mountable, operates much like an analog console, and delivers superb audio quality. It comes with PreSonus' UC Surface control software, Capture™ recording software, QMix®-UC aux control app, and Studio One® Artist DAW.

Features
check_circle_outline
8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
check_circle_outline
4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
check_circle_outline
On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
check_circle_outline
Stereo, 31-band graphic EQ on the main bus
check_circle_outline
18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
check_circle_outline
MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
check_circle_outline
Software library includes PreSonus® Studio One® Artist DAW and Capture™ live-recording software for Mac® and Windows® and UC Surface mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.
About
PreSonus StudioLive Classic 16.0.2 Digital Mixing Desk

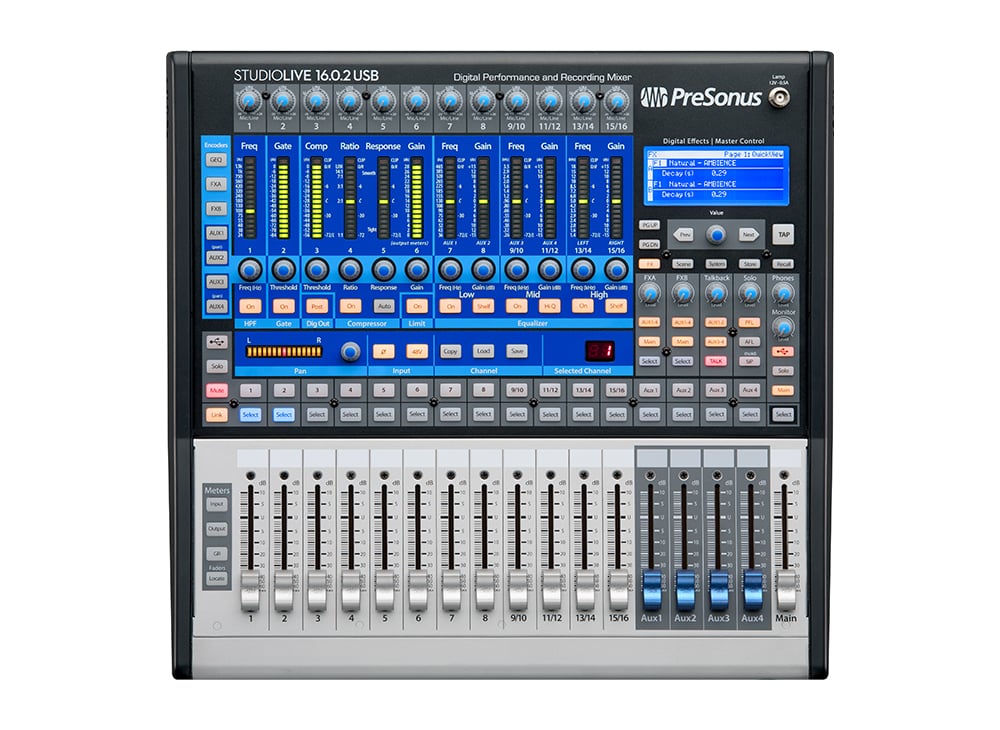

The Ease Of Analog Meets The Power Of Digital
The Ease Of Analog Meets The Power Of Digital
Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Function buttons are color-coded for easy visibility, and EQ and dynamics controls are dedicated and clearly labeled. Every critical control you need is always at your fingertips.

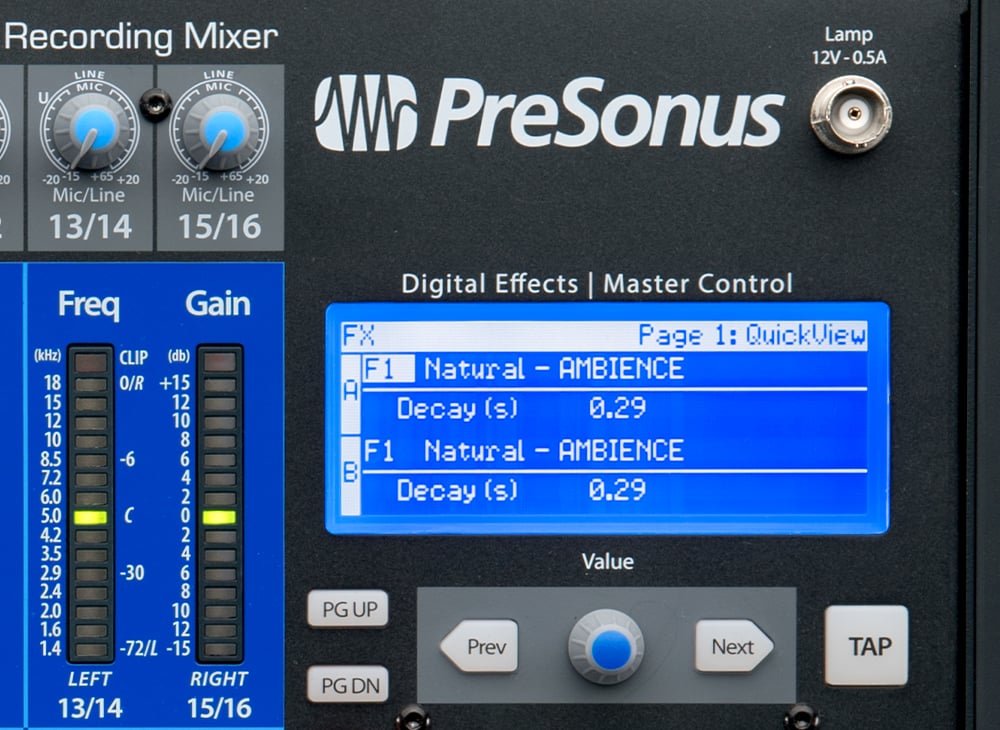

Power Without Compromise
Power Without Compromise
The StudioLive 16.0.2 USB mixer provides plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats.

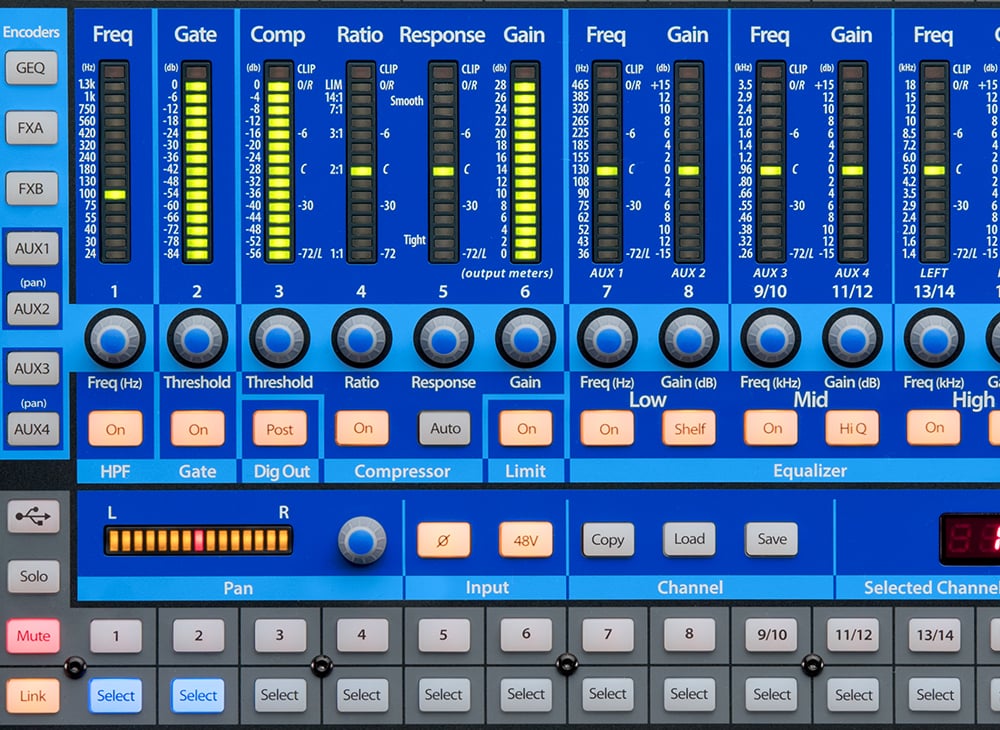

The Fat Channel
The Fat Channel
The unique Fat Channel provides a compressor, limiter, expander, and three-band semi-parametric EQ on every channel and bus; plus a library of professionally crafted presets with room for more. You also get a stereo, 31-band graphic EQ for the main bus, and two 32-bit delay/reverb effects processors, each with its own dedicated mix bus.

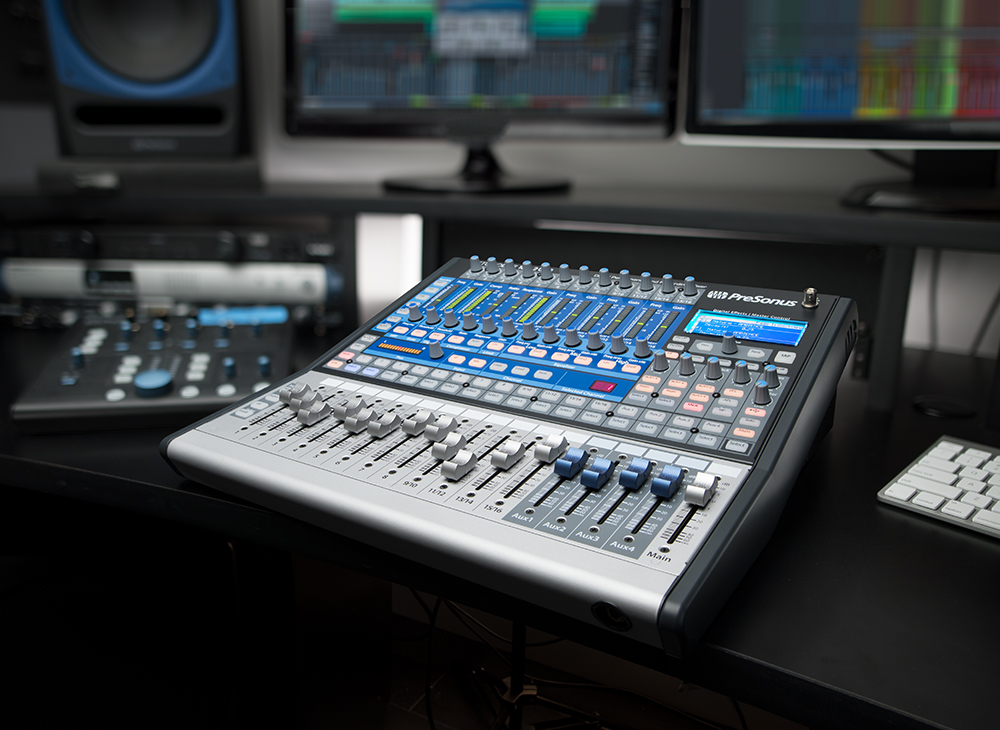

Superior Sound
Superior Sound
Connect a StudioLive 16.0.2 USB mixer, and you’ll instantly hear details and clarity you’d expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range, so you’ll catch every high and low with great accuracy and no audible distortion.

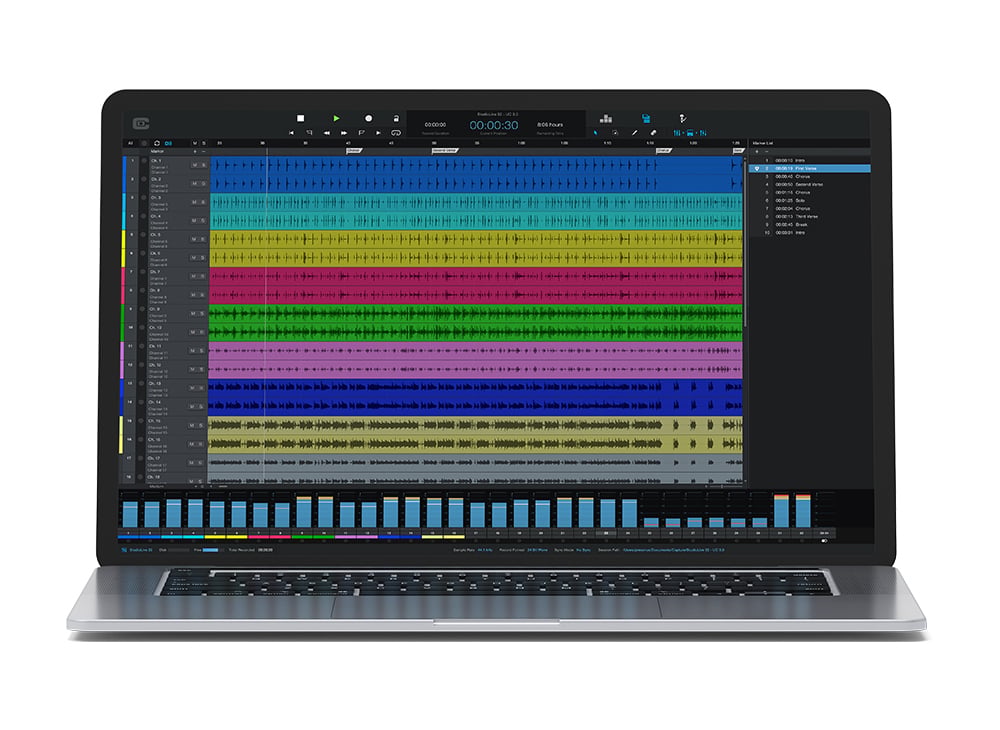

One-Click Recording
One-Click Recording
The StudioLive 16.0.2 USB is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
World-Class Recording Software Included
World-Class Recording Software Included
Take your Capture recordings to the next level with Studio One Artist. Open your multitrack sessions natively in Studio One to start mixing! Studio One’s intuitive drag-and-drop workflow makes recording, mixing, and producing fast and fun.
Specifications
PreSonus StudioLive Classic 16.0.2 Digital Mixing Desk
Microphone Preamp
Total Harmonic Distortion
0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)
Signal to Noise Ratio
-95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Phantom Power
+48 VDC (±2 VDC)
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Input Impedance
1 kΩ (Balanced)
Equivalent Input Noise
+125 dB Unweighted, +130 dB A-Weighted
Line Inputs
Line Inputs Maximum Level
+22 dBu (Unity Gain)
Line Inputs Gain Range
-20 dB to +20 dB (± 1 dB)
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Line Inputs Impedance
10 kΩ
Digital Audio
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
Digital Audio Bit Depth
24
Supported Sample Rates
48 kHz, 44.1 kHz
Power Supply
Voltage
100-120V
Indica se a conexão é por fio, ou por sistema wireless. Também pode indicar outros tipos de ligação, por exemplo, elétrica.
Connection Type
IEC
