MXR Layers M-307 Guitar Pedal

Guitar Effects

ID: ZM108420

MXR

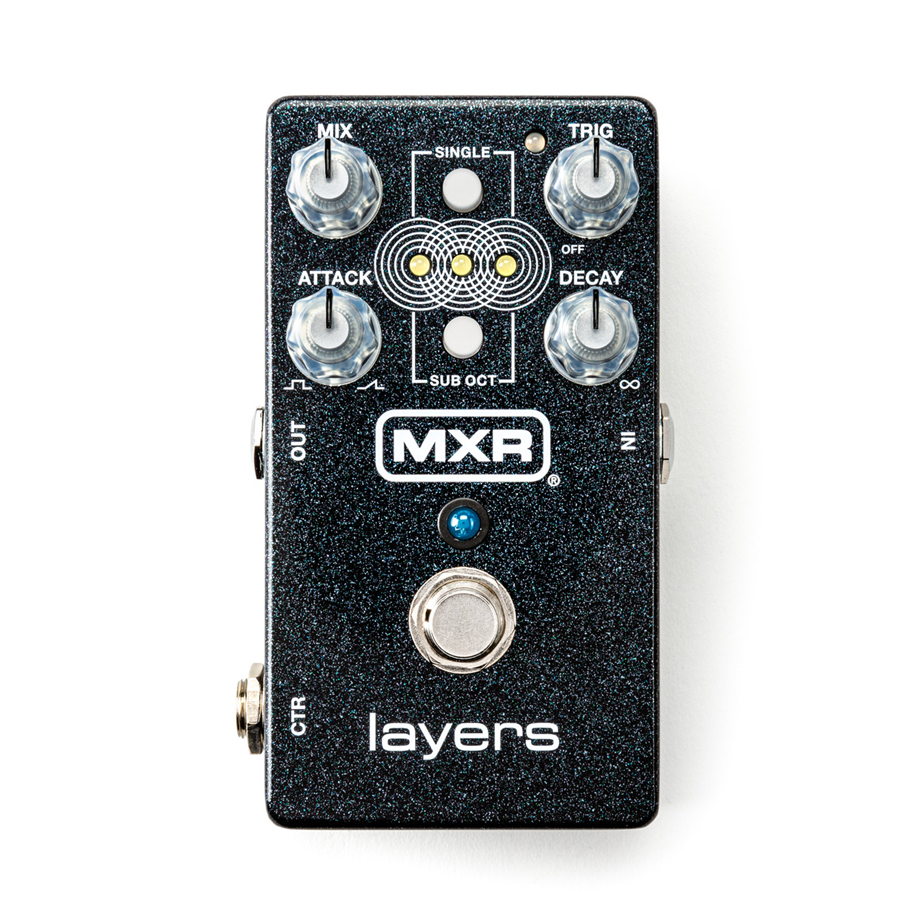

MXR Layers M-307 Guitar Pedal
MXR Layers M-307 Guitar Pedal 1
MXR Layers M-307 Guitar Pedal 2
MXR Layers M-307 Guitar Pedal 3
MXR Layers M-307 Guitar Pedal 4
MXR Layers M-307 Guitar Pedal 5
MXR Layers M-307 Guitar Pedal 6
236 €

In stock

Estimated delivery: 26 to 29 June

Accumulate discounts for your card

Best price on the market

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

MXR Layers M-307 Guitar Pedal
MXR Layers M-307 Guitar Pedal
236 €
Ernie Ball 6157 Cord/Spring Kit Cord/Spring
Ernie Ball 6157 Cord/Spring Kit Cord/Spring
4,83 €
MXR Layers M-307 Guitar Pedal
MXR Layers M-307 Guitar Pedal
236 €
Ernie Ball EB6172 Cord/Spring Kit
Ernie Ball EB6172 Cord/Spring Kit
9,46 €

Layers M-307

The MXR Layers Pedal blooms with rich, organic sustain that imbues every strum and pluck with resonance and depth—pull off chord voicings you never thought possible, compose transcendent melodies, orchestrate harmonic ensembles, create lively stereo pads, and more—all from a standard MXR housing.


This pedal requires a 9-volt (300mA) center-negative power supply and can be powered by the Dunlop ECB003 9-volt adapter or the MXR Iso-Brick, the Iso-Brick Pro, and the Iso-Brick Mini Power Supplies. This pedal cannot be powered by a battery.

Features
check_circle_outline
Multi-sustainer, Sub-Octaver, Resonator
check_circle_outline
3 sustain layers with individual Status-LEDs
check_circle_outline
Layers can be triggered both with the footswitch and through your playing dynamics
check_circle_outline
Controls: Mix, Tri, Attack, Decay
check_circle_outline
Push buttons: Single, Sub Oct
check_circle_outline
Footswitch: Effect bypass
check_circle_outline
LED: Effect On
check_circle_outline
Input and output: 6.3 mm jack
check_circle_outline
Current consumption: 300 mA
check_circle_outline
Power supply via 9 V DC mains adapter (2.1 x 5.5 mm hollow plug, negative pole inside) (not included in scope of delivery)
check_circle_outline
Dimensions (W x D x H): 60 x 111 x 32 mm
check_circle_outline
Weight: 500 g
check_circle_outline
Handmade in USA
Specifications
MXR Layers M-307 Guitar Pedal
Miscellaneous
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
1MΩ
A impedância de saída indica-nos se o sinal que sai do pedal é sinal de instrumento ou de linha.
Output Impedance
100 Ω
Maximum Input Level
+5 dBV
Noise Floor
-97 dBV
Indica quais os tipos de potenciómetros (controlos) disponíveis na guitarra, amplificador, teclado, etc,, como por exemplo, volume, tom, 'push and pull' ou outros.
Controls
Mix, Tri, Attack, Decay
Push Buttons
Single, Sub Oct
Indica se o equipamento pode ligar footswitch, nalguns casos pode específicar o tipo de footswitch compatível. Não significa que esteja inclúido.
Footswitch
Effect bypass
Luz que indica o efeito ativado.
LED
Effect On
Entrada e saída do sinal no equipamento.
Input and Output
6.3 mm jack
Refere-se consumo de energia, em amperes.
Current Draw
300 mA
Type of power supply needed for the equipment to operate.
Power Supply
9 V DC mains adapter (2.1 x 5.5 mm hollow plug, negative pole inside)
Displays the dimensions of the unit in width, depth and height.
Dimensions (W x D x H)
60 x 111 x 32 mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
500 g
