Ibanez
Ibanez SR506E Brown Mahogany 6 strings

Ibanez SR506E Brown Mahogany 6 strings

878 €

In stock

Estimated delivery: 17 to 19 Junho

Accumulate discounts for your card

Best price on the market

Free Shipping
Color:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Ibanez SR506E

The Ibanez Standard SR506E-BM Brown Mahogany features a straightforward concept that combines the legendary playing comfort of the Soundgear design with high-quality and functional features. This product uses an okoumé body in the well-known streamlined design, while the comfortable "SR6" neck is made of five-piece Jatoba and walnut. On the bass amplifier, the Ibanez SR506E with two Bartolini BH2 pickups and the active Ibanez Custom Electronics 3-band tone control covers a wide sound spectrum, making it an all-rounder for almost every musical style. The Ibanez standard SR506E-BM Brown Mahogany features an Ibanez Accu-Cast B500 bass bridge and Die-Cast bass tuners.

Features
check_circle_outline
Rosewood fretboard
check_circle_outline
Accu-cast B500 bridge
check_circle_outline
Bartolini® BH2 pickups
check_circle_outline
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
About
Ibanez SR506E Brown Mahogany 6 strings

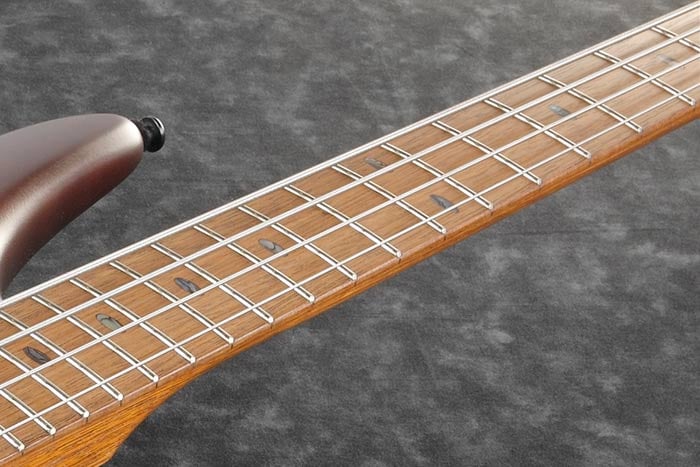

Rosewood fretboard
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

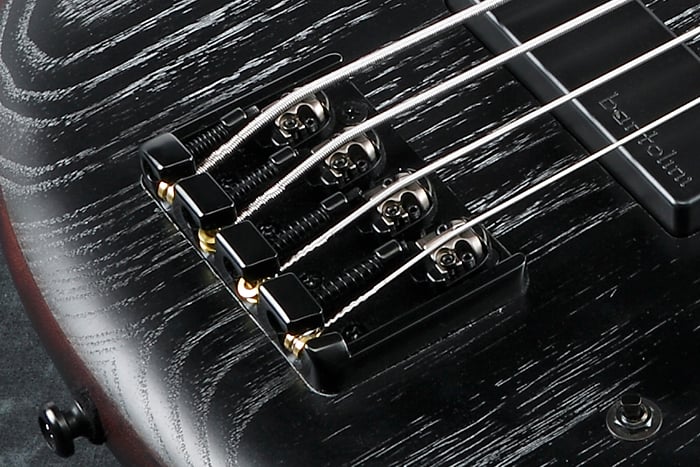

Accu-cast B500 bridge
Accu-cast B500 bridge
The Accu-cast B500 bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

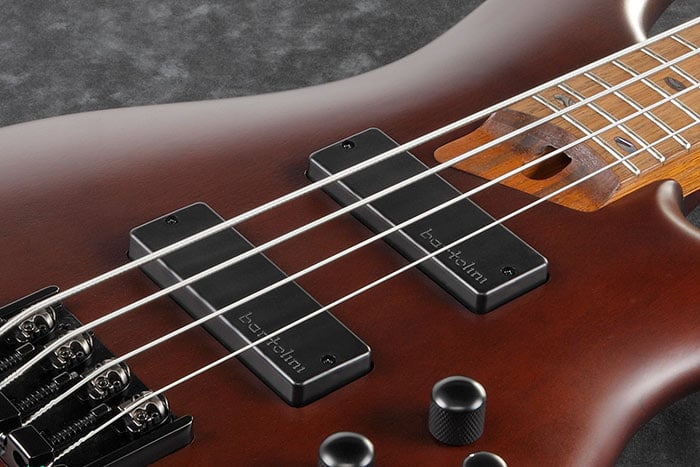

Bartolini® BH2 pickups
Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.

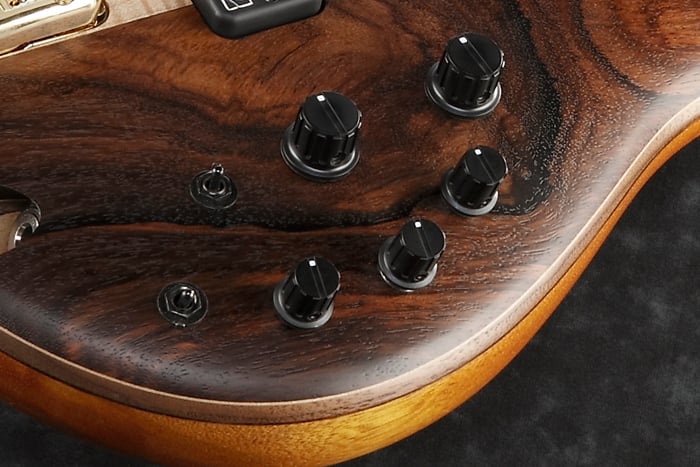

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones. Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.

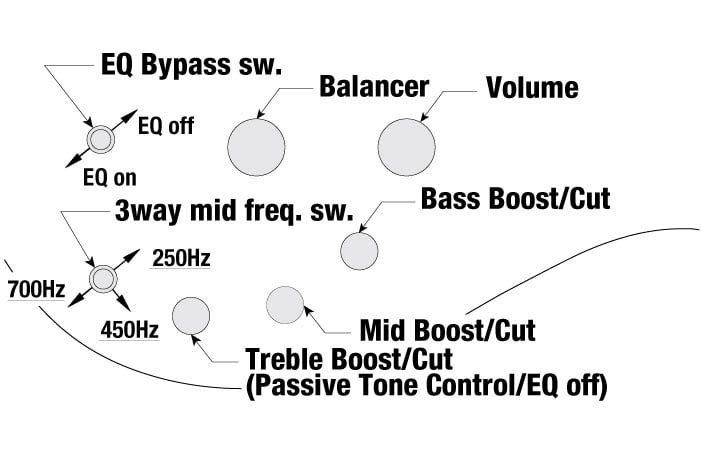

Controls
Controls
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs: the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch: When the switch is in neck position, mid boost peak is at 250Hz; When the switch is in center position, mid boost peak is at 450Hz; When the switch is in bridge position, mid boost peak is at 800Hz. The other switch closer to the middle of the bass is the EQ bypass switch: When the switch is in neck position, the EQ is off; When the switch is in bridge position, EQ is on; When EQ is off, the treble knob works as a passive tone control knob.

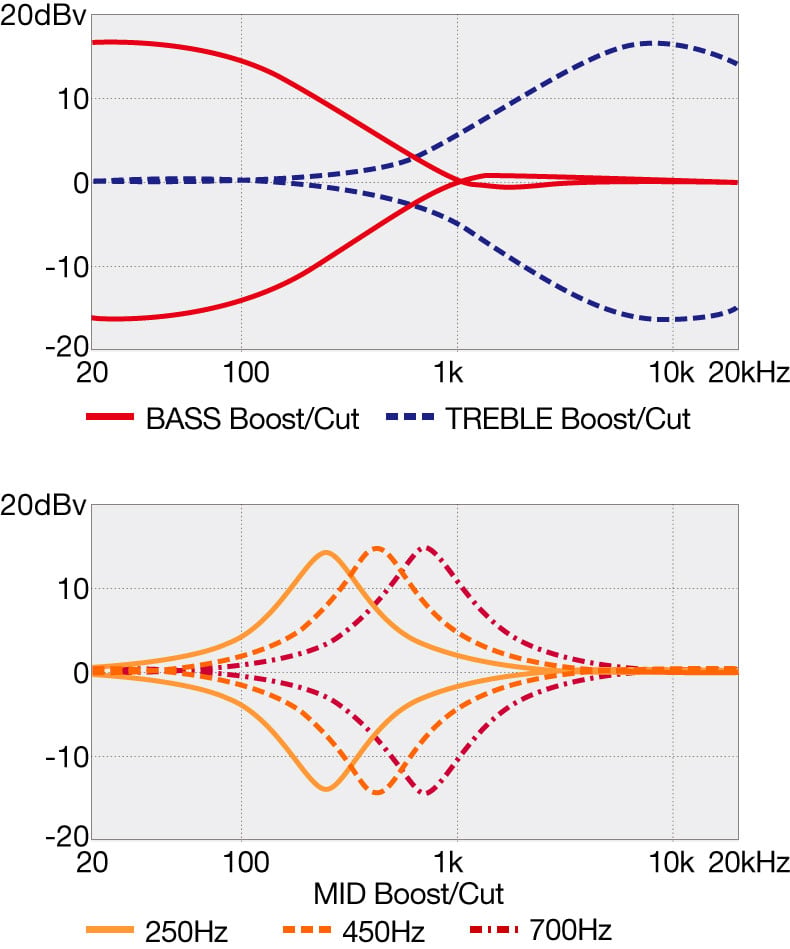

Frequency Response
Frequency Response
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
Specifications
Ibanez SR506E Brown Mahogany 6 strings
Specifications
Indica-nos o tipo de madeira, acabamento, e curvatura do braço do instrumento.
Neck Type
SR6 / 5pc Jatoba/Walnut neck
Indica-nos quais as madeiras utilizadas no tampo, costas e corpo do instrumento.
Top / Back / Body
Okoume body
Tipo de madeira usada na escala do instrumento.
Fretboard
Rosewood fretboard / Abalone oval inlay
Frets
Medium frets
Número de trastes que a guitarra / instrumento possui. Um maior número de trastes permite ao guitarrista atingir notas mais agudas, sendo o estilo musical do mesmo uma grande influencia nesta escolha.
Number of Frets
24
A bridge is a device that supports the strings on a stringed musical instrument and transmits the vibration of those strings to another structural component of the instrument.
Bridge
Accu-cast B506 bridge
O espaçamento entre cada corda do instrumento (geralmente medido em mm)
String Space
16.5mm
Neck Pickup
Bartolini® BH2 neck pickup (Passive)
Bridge Pickup
Bartolini® BH2 bridge pickup (Passive)
Equaliser
Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
Refere-se à afinação de fábrica que a marca do instrumento predefiniu.
Factory Tuning
1C,2G,3D,4A,5E,6B
Strings
D'Addario® EXL165 + .032/.130
String Gauge
.032/.045/.065/.085/.105/.130
A cor do hardware do instrumento (potenciómetros, seletores, etc).
Hardware Color
Black
Neck Dimensions
Scale
864mm
Width of the neck at the nut
54mm at NUT
Width of the neck at the first fret
83mm at 24F
Thickness of the neck at the first fret
19.5mm at 1F
Thickness of the neck at the twelfth fret
21.5mm at 12F
Normalmente medido em polegadas, define a curvatura de escala/braço do instrumento.
Radius
400mmR
