Pirastro Passione Medium 4/4 Violin String Set
Yamaha
Yamaha AG08 Live Streaming Mixer Black
Yamaha AG08 Live Streaming Mixer Black 1
Yamaha AG08 Live Streaming Mixer Black 2
Yamaha AG08 Live Streaming Mixer Black 3
Yamaha AG08 Live Streaming Mixer Black 4
Yamaha AG08 Live Streaming Mixer Black 5
Yamaha AG08 Live Streaming Mixer Black 6

Yamaha AG08 Live Streaming Mixer Black

Digital Mixer

ID: ZM102378

470 €

In stock

Estimated delivery: 22 to 25 June

Accumulate discounts for your card

Best price on the market

Color:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Your Audience Awaits!

As the flagship model of Yamaha’s second-generation AG series lineup, the AG08 combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station.

By integrating more flexible I/O and USB routing options, expanded foot switch functionality, as well as additional DSP effects and improved internal circuitry for class-leading sound, the AG08 is able to support an impressive depth of live streaming applications, as well as offline audio content creation.

From single-user talking, gaming, ASMR, voice acting, or vocal/instrument performances, to multiple personnel applications even on the scale of a full-blown variety show, the real-world, real-time functionality of the AG08 will leave your audience wanting more.

Features
check_circle_outline
Two mic/line inputs and two headphone outputs can be used simultaneously
check_circle_outline
+48 V phantom power on CH1 and 2 for condenser mics or Dl boxes
check_circle_outline
Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
check_circle_outline
Three stereo inputs with assignable faders, switchable input source for LINE/USB
check_circle_outline
4-pole mini input/output (TRRS) on CH7/8
check_circle_outline
MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
check_circle_outline
Six sound pads trigger audio samples in real time to add color to live streams
check_circle_outline
Internal circuitry delivers highest sound-quality in the AG series
check_circle_outline
24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
check_circle_outline
Flexible inputs and outputs ideal for live streaming
check_circle_outline
DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
check_circle_outline
AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
check_circle_outline
60 mm faders and Mute buttons for each input
check_circle_outline
Foot switch functionality for more versatile system control
check_circle_outline
Windows / Mac support via USB-C connection
check_circle_outline
iOS connectivity via Apple Camera Adapter (requires external USB power supply)
check_circle_outline
Android supported by 4-pole mini input/output (TRRS)
check_circle_outline
USB-C power input (5 V DC, 1.5 A)
check_circle_outline
Cubase Al, WaveLab Cast, Cubasis LE are available
About
Yamaha AG08 Live Streaming Mixer Black
Two Condenser Mic IN with Two Headphone OUT
Two Condenser Mic IN with Two Headphone OUT
Both Channel 1 and 2 of the AG08 are equipped with phantom power to support condenser microphones that are favored amongst musicians and dialogue-driven content creators for their exceptional sensitivity and fidelity. You can also pan left and right with the AG08 Controller dedicated app for any kind of stereo microphones including ASMR microphones. In addition, there are two independent headphone monitor channels for applications where two people are broadcasting a conversation or where there is someone other than the performers managing the audio.

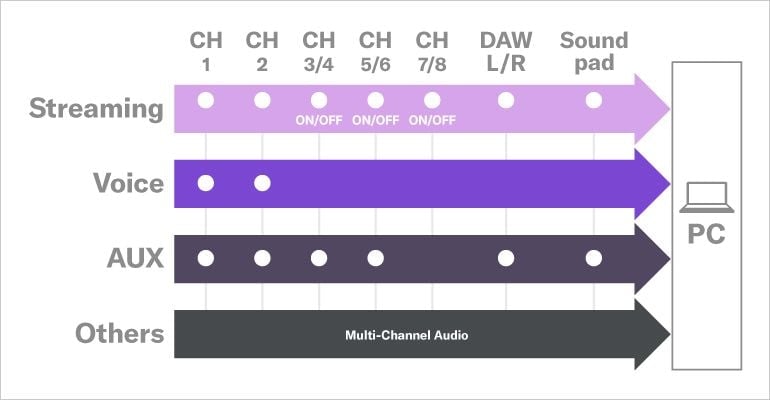

Three Assignable Faders for Flexible USB IN/OUT
Three Assignable Faders for Flexible USB IN/OUT
The signal from multiple apps on a USB-connected PC, or analog line inputs can be individually assigned to the faders for Channel 3/4, 5/6, or 7/8 of the AG08, allowing you to intuitively mix the LINE/USB audio signals via physical control of the faders. Conversely, three USB mixed outputs from the AG08 can be individually assigned to various apps on the PC via USB connection.

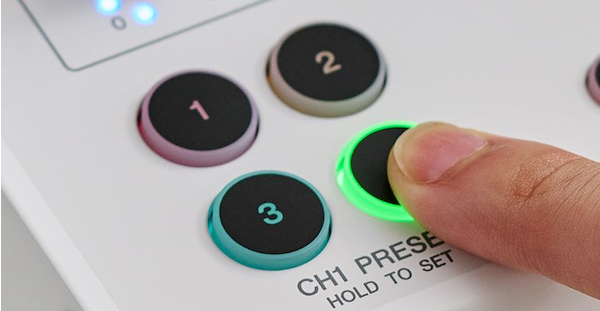

Four Effect Preset Buttons for CH1
Four Effect Preset Buttons for CH1
The four effect preset buttons on the bottom left of the AG08 console allow you to seamlessly switch between customized effect presets for Channel 1 on the fly. This gives users versatile, real-time control to add just the right amount of effect - including the new Voice Changer - during voice-acting and live music performances in particular.
Five DSP Effects
Five DSP Effects
The AG08 come equipped with high-quality effects to color, correct, or enhance your vocal and musical instrument signals. Grouped into the five categories detailed below, all effects are processed by the onboard DSP, so there is no latency and no impact on PC processing. 1. Voice Changer (CH1) / Amp Sim (CH2) 2. Comp, EQ 3. Reverb, Delay 4. Ducker 5. Maximizer

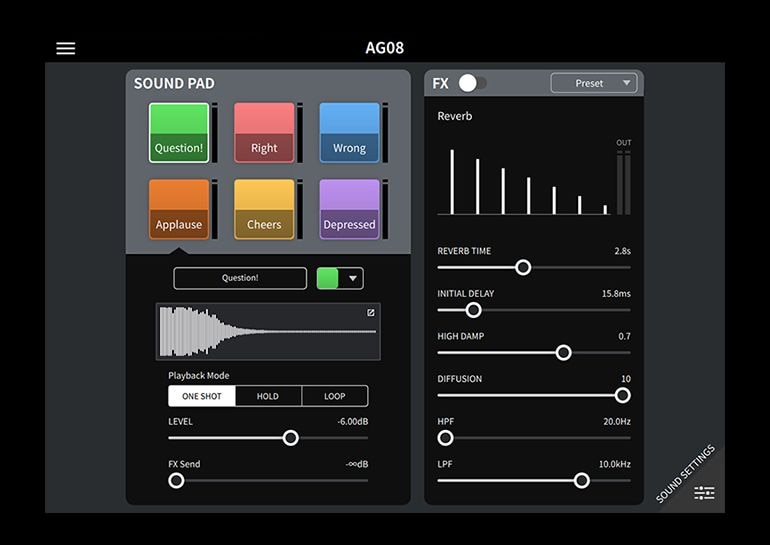

Six Sound Pads
Six Sound Pads
The AG08 comes equipped with six customizable sound pads that allow you to easily add sound effects in real time to liven up your broadcasts. Using the “AG08 Controller” dedicated app you can simply drag and drop existing sound files and assign them to the pad of your choice, or record your own samples via the AG08 inputs and trim them to their desired length within the app.
Convenient Power Supply
Convenient Power Supply
The new console also comes equipped with a new PA-150B power adapter for more stable operation and to accommodate a wider range of application setups along with the onboard USB 1.5 A bus power supplier.

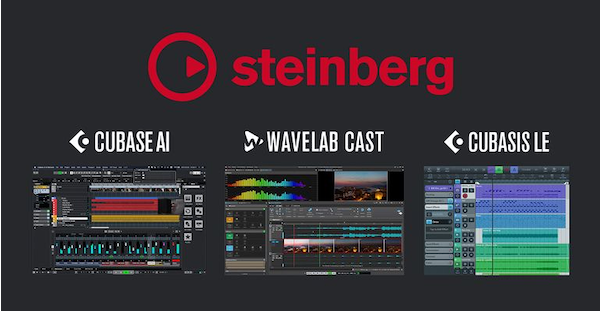

Powerful bundled software
Powerful bundled software
The AG08 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG08 is also compatible with Cubasis LE applications for iOS devices which are available free of charge from Steinberg to support and inspire your audio content creation.
Specifications
Yamaha AG08 Live Streaming Mixer Black
Input Channels
Entradas de microfone/instrumento. Nas placas de mistura, esta é uma entrada para um canal especificamente concebido para sinais de nível de linha.
Mono (MIC/LINE)
2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Entrada de sinal Estéreo.
Stereo (LINE)
3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
Indica a quantidade e o tipo de auxiliares presentes no produto. Geralmente associado a mesas de mistura, os auxiliares permitem enviar um segundo sinal de input ou output para outro destino, independente do input/output principal.
Aux
1 - Stereo mini
Smartphone
1 - 4-pole mini input/output (TRRS)
Indica se o equipamento permite ligação USB e/ou qual o seu tipo.
USB
1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)
Output Channels
Ficha de saída para auscultadores.
Phones
2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
Smartphone
1 - 4-pole mini input/output (TRRS)
Saída de áudio para efeito de monição (retorno do som para os músicos em palco).
Monitor OUT
2 - LR Stereo: XLR, 1/4 TRS Phone
Stereo Out
1 - MIX: LR stereo TRS Phone
Indica se o equipamento permite ligação USB e/ou qual o seu tipo.
USB
1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out
USB
USB Audio
8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input
1 - Type-C, 5 V DC, 1.5 A
Bus
Canal destinado à transformação do sinal áudio através da passagem por ele, ou ao agrupamento de sinais para organização e não sobrecarregar as faixas individuais.
Bus
4 Stereo
On-board Processors
Digital Signal Processor, unidade especializada responsável pelo processamento do som em formato digital. É onde os efeitos, filtros e outras características do som são processados/produzidos.
DSP
Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer
General
Funções que o equipamento desempenha para potenciar o verdadeiro propósito do artigo. Por exemplo: diferentes timbres, sonoridade e/ou outras características.
Functions
MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
Indica/descreve a alimentação necessária para um pedal ou outro dispositivo, amplificador, etc.
Power Requirements
DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
Acessórios que venham incluídos no produto. Ex.: chaves para manutenção, panos, etc.
Included Accessories
AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Dimensions
Item width. Usually measured in mm or cm. And even in inches.
Width
290 mm (11.5")
Altura do artigo. Por norma medida em mm ou cm. Em determinados produtos, esta medida refere-se ao comprimento.
Height
88 mm (3.5")
Indica a profundidade do artigo, geralmente medido em mm ou cm
Depth
222 mm (8.8")
Peso efetivo (real) do artigo.
Net Weight
2.2 kg (4.9 lbs)
