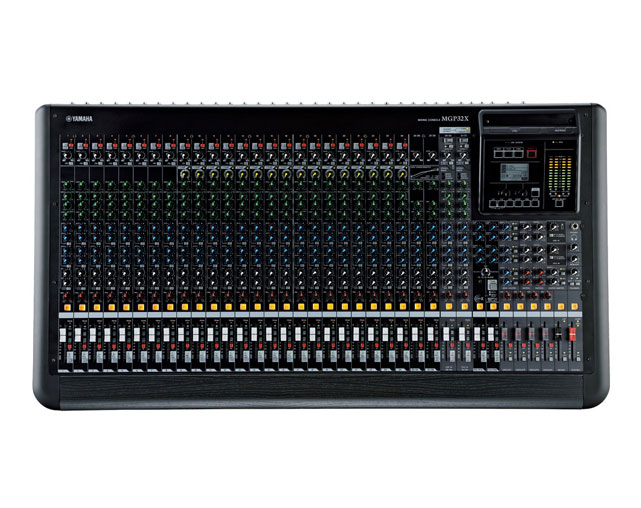

Yamaha MGP32X Mixer with Effects

1
Analogue Mixer

ID: ZMYASEMM03060007

Yamaha
Yamaha MGP32X Mixer with Effects
1742 €

In stock

Estimated delivery: Friday, 26 June

Accumulate discounts for your card

Best price on the market

Color:
Measure:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Yamaha MGP32X Mixer with Effects
Yamaha MGP32X Mixer with Effects
1742 €
D'Addario PW-G-20 Black 6,10m Instrument Cable
D'Addario PW-G-20 Black 6,10m Instrument Cable
30,51 €
Yamaha MGP32X Mixer with Effects
Yamaha MGP32X Mixer with Effects
1742 €
Planet Waves PWCMIC25 7,62mt Microphone Cable
Planet Waves PWCMIC25 7,62mt Microphone Cable
21,56 €
Yamaha MGP32X Mixer with Effects
Yamaha MGP32X Mixer with Effects
1742 €
Roland RCC-10-TR28 3mt JackSt/2xJackM Audio Cable
Roland RCC-10-TR28 3mt JackSt/2xJackM Audio Cable
19,58 €

Digital Heart. Analog Soul.

Drawing from our decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.

At the heart of the MGP's compact configuration, we've taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound.

Features
check_circle_outline
24 Mic Inputs with 48V Phantom Power and HPF per Channel
check_circle_outline
32 Line Inputs (24 mono and 4 stereo)
check_circle_outline
6 AUX Sends + 2 FX Sends
check_circle_outline
4 GROUP Buses + ST Bus
check_circle_outline
1 Matrix out
check_circle_outline
1 Mono out
check_circle_outline
Digital input and output A for USB or iPod / iPhone
check_circle_outline
Dimensions: 1027 x 169 x 565 mm
check_circle_outline
Weight: 19 kg
Specifications
Yamaha MGP32X Mixer with Effects
Outline
Mixing Channels
32 Line Inputs (24 mono and 4 stereo)
GROUP
4 GROUP Buses + ST Bus
Matrix em mesas de mistura possibilitam que se crie uma saída extra de um sinal seleccionado, com alterações em relação ao mesmo sinal que é enviado para a saída principal da mesa. Isto possibilita por exemplo, ter um mesmo som ligado à salas(ou partes) d
Matrix
1 Matrix out
Processadores/controladores incorporados no aparelho.
On-board processors
FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
Input Channel Functions
-
Mic Inputs
MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)
Alimentação de 48V. Essencial para certos microphones, e outros equipamentos que necessitem de uma fonte de alimentação externa.
Phantom Power
48V phantom power per channel
Indica se o equipamento tem entrada de linha. Pode especificar quantas.
Line Input
LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
In/Out - Entrada e saída digital. No caso das mesas de mistura, esta especificação é útil para transferência da mistura obtida diretamente para um aparelho/pc.
Digital I/O
USB Device, iPod / iPhone
Aux Output ou Aux Send - Indica a existência de saídas de audio auxiliares para além da saída principal (Main Output/Master Output). No caso de alguns equipamentos, pode ser possível selecionar sinais/sons diferentes para as diferentes saídas, como é o ca
AUX OUT
6 AUX Sends + 2 FX Sends
General Specifications
Total Harmonic Distortion (THD)
0.02% (20Hz-20kHz@ +14dBu)
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Equivalent Input Noise
-128 dBu Equivalent Input Noise
O ruído residual cancela o efeito de fontes de ruído externas, como fontes de alimentação. É por norma medido em dBu.
Residual Output Noise
-94 dBu Residual Output Noise
Indica as informações sobre Crosstalk da saída de áudio do instrumento.
Crosstalk
-74dB @ 1kHz
Indica/descreve a alimentação necessária para um pedal ou outro dispositivo, amplificador, etc.
Power Requirements
100-240V 50Hz/60Hz
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
86W max
Indica a medida da largura do artigo.
Width
1,027mm (40.4")
Indica a medida da altura do artigo. (Por vezes indica o ângulo de projeção de som na horizontal.)
Height
169mm (6.7")
Indica a medida da profundidade do artigo.
Depth
565mm (22.2")
Peso efetivo (real) do artigo.
Net Weight
19kg (41.9lb)
