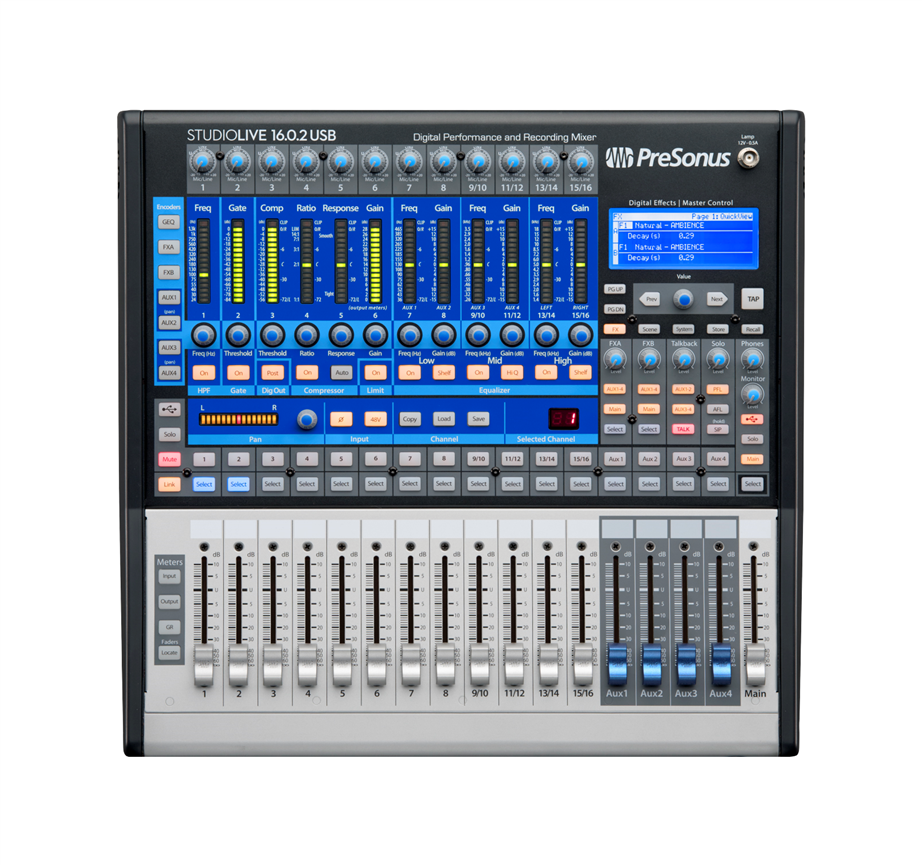

PreSonus® StudioLive® Classic 16.0.2 USB Digital Console Mixer

The StudioLive® 16.0.2 USB is a great choice for small churches, schools, bands, and clubs, and it's perfect for a small studio on a budget. It features 16 channel inputs, 4 of them stereo channels, and 12 with XMAX mic preamps, a built-in 18x16 USB 2.0 interface, extensive signal processing on every channel and bus, 4 aux buses, extensive metering, scene and setting save/recall, MIDI control and more.


Yet it's lightweight and rack-mountable, operates much like an analog console, and delivers superb audio quality. It comes with PreSonus' UC Surface control software, Capture™ recording software, QMix®-UC aux control app, and Studio One® Artist DAW.

Features
check_circle_outline
8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
check_circle_outline
4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
check_circle_outline
On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
check_circle_outline
Stereo, 31-band graphic EQ on the main bus
check_circle_outline
18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
check_circle_outline
MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
check_circle_outline
Software library includes PreSonus® Studio One® Artist DAW and Capture™ live-recording software for Mac® and Windows® and UC Surface mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.
Specifications
PreSonus StudioLive Classic 16.0.2 Digital Mixing Desk
Microphone Preamp
Total Harmonic Distortion
0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)
Signal to Noise Ratio
-95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Phantom Power
+48 VDC (±2 VDC)
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Input Impedance
1 kΩ (Balanced)
Equivalent Input Noise
+125 dB Unweighted, +130 dB A-Weighted
Line Inputs
Line Inputs Maximum Level
+22 dBu (Unity Gain)
Line Inputs Gain Range
-20 dB to +20 dB (± 1 dB)
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Line Inputs Impedance
10 kΩ
Digital Audio
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
Digital Audio Bit Depth
24
Supported Sample Rates
48 kHz, 44.1 kHz
Power Supply
Voltage
100-120V
Indica se a conexão é por fio, ou por sistema wireless. Também pode indicar outros tipos de ligação, por exemplo, elétrica.
Connection Type
IEC
